Program Guide Info

Because this topic is a bit more involved, I’ve made a separate page for it here.

The info section of a channel is used to provide program guide data for the channel. This is not related to the metadata of the channel itself like name, abbr, or number, but rather info about what’s currently playing on the channel.

There are multiple ways to provide program info for a channel, depending on where you get your information from and how often you want it to update. We’ll cover them from simplest to most involved.

Static Definitions

channels:

- number: 5
  name: Hypercom News
  abbr: HCN
  info:
    title: Local Update
    summary: Get the latest happenings in your local community
    category: news
    isStereo: true
    isSubtitled: true

You can define program info statically in the channel definition itself. It’s simple and for channels that don’t change throughout the day, this is the easiest way to do it.

Let’s look at the properties you can define in the info section. All are optional.

Properties

`title`

Type: string

The title of the content.

`summary`

Type: string

Summary of the content.

`parentalRating`

Type: string

Parental rating of the content, for example PG, PG-13, or R.

`personalRating`

Type: number

Personal rating of the content from 0 to 5.

`series`

Type: string

Series name if the content is part of a series.

`season`

Type: number

Season number if the content is part of a series.

`seasonEpisodeNumber`

Type: number

Episode number within the current season.

`year`

Type: number

Year the content was released.

`isSubtitled`

Type: boolean

Whether the program contains subtitles.

We’ll display a closed caption icon in the guide if this is true.

`isStereo`

Type: boolean

Whether the program has stereo audio.

We’ll display a headphones icon in the guide if this is true.

`category`

Type: "movie" | "news" | "sports event" | "kids"

Category used for guide color coding. Currently we only support these four categories, but I’ll be working on a more expansive list in the future.

If not specified we use the regular background color for the guide.

Dynamic Updates

If you’ve got a dynamic stream of content and want to update TVS’s program guide info in real time, there are a few ways to do that as well.

JSON Endpoints

Suppose you’ve got a JSON file (or an API that returns JSON) hosted on a server that you update with current program info. You can point the info property to that endpoint and TVS will fetch it regularly to use in the program guide.

For example, if you have a file hosted somewhere like https://gcpw.art/tvs/example-files/channel-info/single-channel.json that contains the following:

{
    "title": "The Hypercom News Hour",
    "summary": "Join us for a power hour of news and information from around town and around the world.",
    "personalRating": 5,
    "isStereo": true
}

You can point the info property to that URL like so:

channels:
- number: 5
  name: Hypercom News
  abbr: HCN
  info: https://gcpw.art/tvs/example-files/channel-info/single-channel.json
  # ... define the rest of the channel here

TVS will fetch that JSON file every 30 seconds and update the program guide info for that channel accordingly.

Changing the refresh interval

You can change the refresh interval for all external sources by setting maintenance.defaultExternalSourceRefreshInterval in your configuration file. The value is in seconds.

maintenance:
  defaultExternalSourceRefreshInterval: 10 # refresh every 10 seconds instead of the default 30 seconds

External Sources with Multiple Channels

If you have a single JSON endpoint that contains program info for multiple channels, define it as an external source. Add an externalSources section to the configuration file and declare the source there. The source name can be anything you want, but must be unique and use only letters, numbers and dashes. You’ll define a URL to your JSON file and be sure to set the type to live to direct TVS to treat it as a source that returns what’s on right now.

externalSources:
  myChannels:
    url: https://gcpw.art/tvs/example-files/channel-info/multiple-channels.json
    type: live

Then when you define your channels, point info this time at the external source and specify which channel you want to pull info for, in the format externalSourceName:channelId. For example:

channels:
- number: 5
  name: Hypercom News
  abbr: HCN
  info: myChannels:05
  # ... define the rest of the channel here

Defining content from external sources

Up to this point we’ve been talking about guide info, which is completely divorced from what’s actually playing on the channel. This is done to ensure maximum flexibility, but it’s also possible to get what’s displayed on screen from an external file itself, meaning that the source of truth for both the content and program guide is in one file, while the channel lineup in the main configuration file just tells TVS which channels are available and where to find the content for each one.

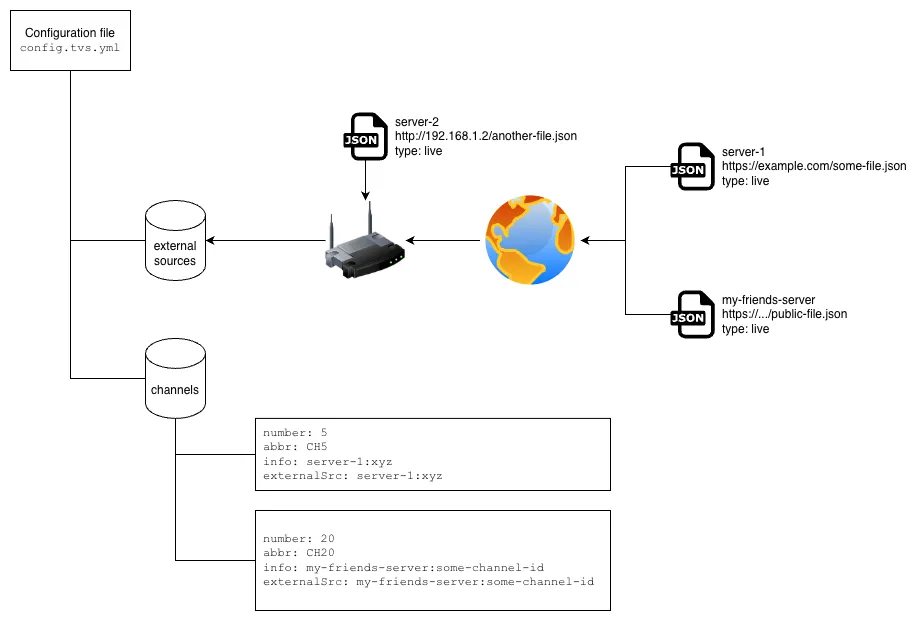

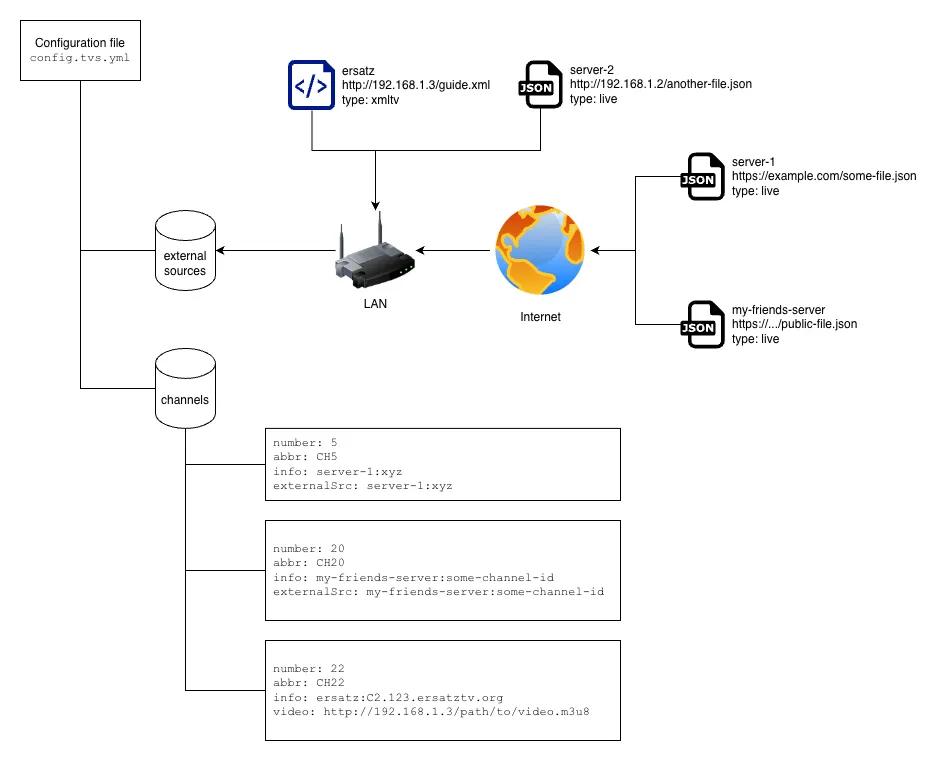

Example of the distributed nature of external sources

TVS has been designed around the idea of decentralization from the beginning, and external sources are no different. You can define multiple sources to pull guide data or program data from, including sources on your LAN or over the internet.

Take this example JSON file that contains multiple channels with both content and program guide info:

[
  {
    "channelId": "01",
    "channelAbbr": "HCN",
    "title": "The Hypercom News Hour",
    "summary": "Join us for a power hour of news and information from around town and around the world.",
    "parentalRating": "TV-PG",
    "isStereo": true,
    "engine": "image",
    "props": "https://gcpw.art/tvs/example-files/channel-info/example-channel.png"
  },
  {
    "channelId": "02",
    "channelAbbr": "RED",
    "title": "The Color Red",
    "engine": "color",
    "props": "red"
  }
]

Here’s a complete example of using that file as an external source as well as getting guide info from it.

externalSources:
  channelsWithProgrammingExample:
    url: https://gcpw.art/tvs/example-files/channel-info/multiple-channels-with-programming.json
    type: live

channels:
- number: 100
  info: channelsWithProgrammingExample:01
  externalSrc: channelsWithProgrammingExample:01

- number: 120
  info: channelsWithProgrammingExample:02
  externalSrc: channelsWithProgrammingExample:02

The externalSrc engine lets you pull data from an external source and display it on the channel. The info property lets you pull program guide info from an external source. In this example, both are pulling from the same source, but they don’t have to be. It may sound clunky, and in some ways it is, but hear me out… an externalSrc is a content engine just like any other, meaning you can use it inside a layout or a loop like any other engine; it just points to a different source of content that can change whenever it’s shown.

Suppose for instance you’ve got a program guide that has content on the upper half of the screen and the guide takes up the lower half. The program’s info is statically defined as a 24-hour program guide channel, but the content in the upper half could be an externalSrc that points to different content regularly. Now suppose that external source has its own program info defined for it, but we don’t necessarily care about that info since we’re just using the source to display content. That’s the type of flexibility that external sources give you.
