Television Simulator

Abstract Background

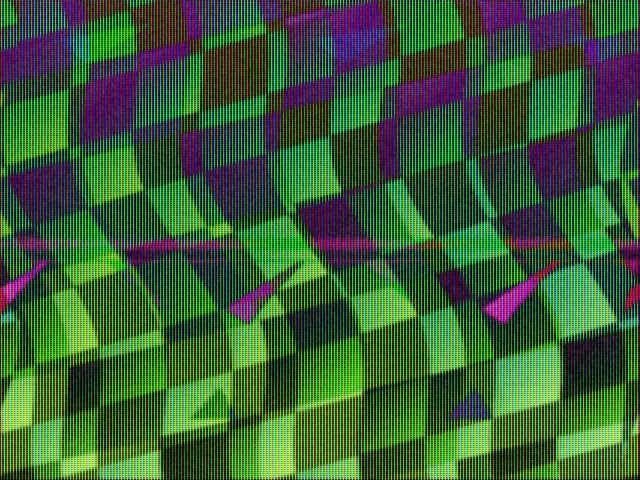

Abstract background engine in action

The abstract background engine warps images into animated patterns. There are two styles currently available: wave1 and wave2.

If you don’t include a src property, a random background will be chosen from the built-in presets each time the content is loaded.

abstract-background:
  type: wave1
abstract-background:
  src: /content/backgrounds/my-preset.json
  type: wave2
  width: 320
  height: 480

Properties

Section titled “Properties”

type required

Section titled “type ”

Type: wave1 | wave2

Since: TVS 5.9.0

The style of abstract animation to display.

src

Section titled “src”

Type: string

Since: TVS 5.9.0

The URL of the source file to use for the background, relative to the content root or absolute. If empty or unspecified, a random background file will be used.

width

Section titled “width”

Type: number

Default: 640

Since: TVS 5.9.0

The width of the canvas in pixels.

height

Section titled “height”

Type: number

Default: 480

Since: TVS 5.9.0

The height of the canvas in pixels.
